Biomass

What is Biomass?

Biomass boilers burn organic matter to generate heat, which is generally used for central heating and hot water. The most common fuel used in biomass boilers is wood pellets, however, wood chip, split logs and miscanthus (elephant grass) are just as good and can offer an ever greater return to those with their own or local supply.

Biomass boilers make very efficient use of the energy stored in wood, converting up to 95% of it into usable heat, compared to only 17% for an open fire and comparable with a good, modern oil boiler.

Correctly managed, biomass is a sustainable fuel that can deliver a significant reduction in net carbon emissions when compared to traditional fossil fuels as burning wood is carbon neutral – releasing the same amount of CO2 as it absorbs during its life. In fact, if a tree were left to decompose it would release the same amount of CO2 into the atmosphere as burning it would, with no real benefit to anyone.

Biomass technology provides both an economic and ecological solution in areas off the gas grid, where properties are forced to use more expensive fuels such as oil, LPG or electricity.

How it Works

A biomass system replaces your existing fossil fuel boiler, or boilers, and is connected into your current heating system which is controlled by either your existing network or a new control panel.

Depending on which boiler you choose, fuel is loaded either manually or automatically into the boiler which then controls the combustion depending on your heating and hot water requirements.

Due to their flexibility, biomass systems are ideal for retrofit into existing systems, however, all new builds should consider one, alongside other renewable technologies, before any other fossil fuel alternative.

South West Renewables are proud installers of Hargassner Biomass systems.

Why Biomass?

Biomass heating systems help to reduce dependency on fossil fuels, save money on energy bills and cut carbon emissions. They provide a highly sustainable heating solution from individual homes right up to large scale industrial or public buildings, and can easily be installed in new projects or retro-fitted. They offer a very cost effective alternative to oil for buildings that are off-grid.

What are the benefits?

Biomass boilers are one of the technologies that are eligible for payments under the Renewable Heat Incentive (RHI). This means that not only will your heating system save you money and reduce your environmental impact, it could also generate income. Commercial users can receive between RHI payments for every kWh that they produce and use, depending on the size of the boiler.

The domestic scheme offers a deemed payment for every kilowatt hour based on a current EPC. This would mean that a typical home could recieve a significent subsidy toward the cost of a new heating system every year for 7 years.

The earlier the scheme is adopted, the greater the payback is likely to be.

The RHI is tied in to whichever boiler is installed, so it is important to choose one that is both reliable and efficient. As Wood Energy accredited installers we can advise on the most suitable product for your needs and provide the ongoing support that will bring you the best return on your investment.

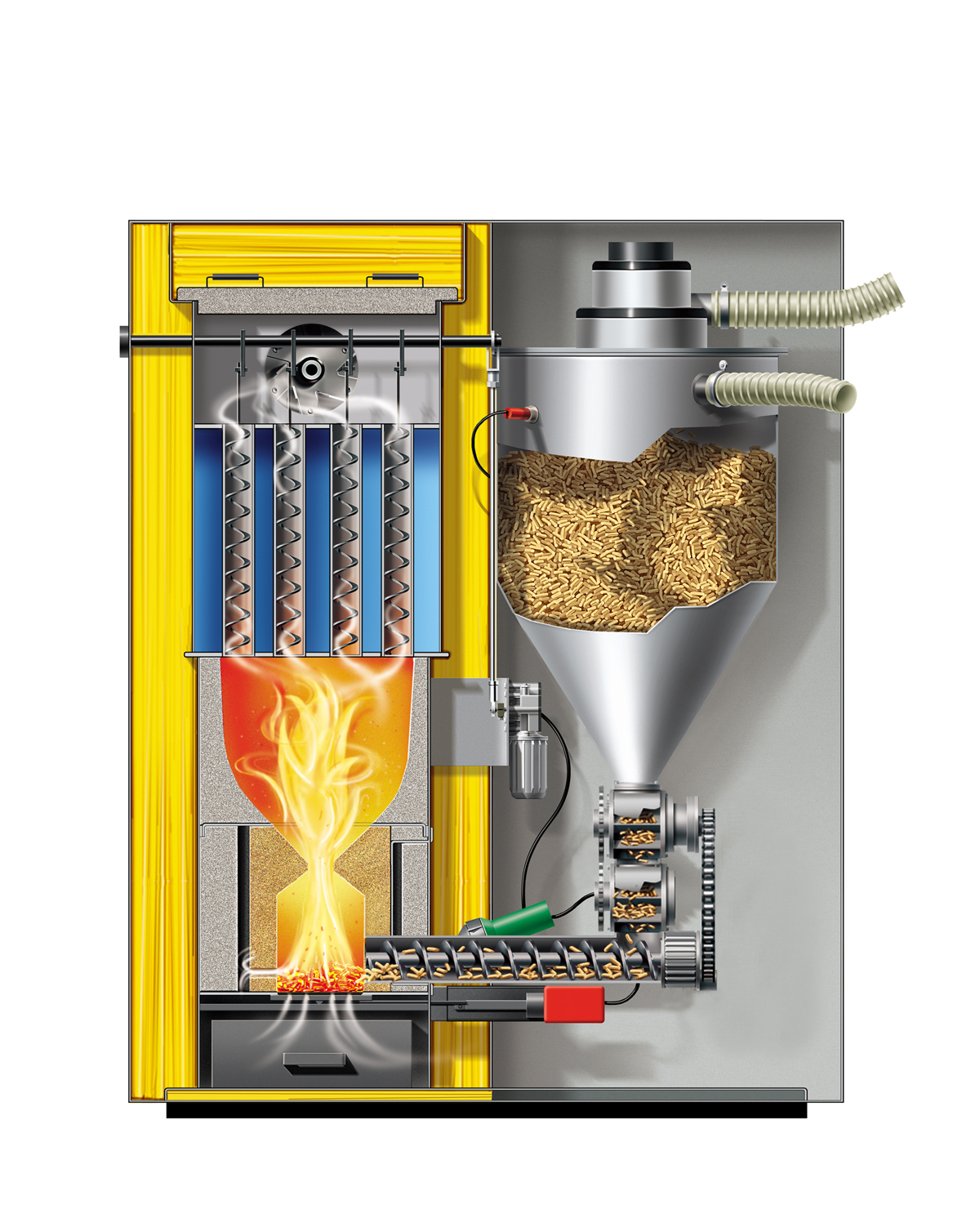

Hargassner 22kw Cutaway

Wood Energy supplies state-of-the-art Hargnasser and Binder wood chip and biomass pellet boilers, some of the most efficient, reliable and advanced equipment available today.

Hargassner Boilers
9kW to 199kW
Binder Boilers
200kW to 10MW
Hargassner technology delivers unparalleled levels of automation:
all boilers have fully automatic ignition, automatic heat exchanger cleaning systems and ash extraction.

Wood Energy is the sole distributor of Hargassner technology in the UK.

The Binder boiler offers both a bespoke design capability up to 10MW and steam capability.

The boilers are ideal for situations that require a larger system – typically as part of a broader M&E project.

Hargassner Wood Chip Boilers

  • WTH 25 – 200kW
Binder RRF (Underfed) Boilers

  • 199kW-10MW
Hargassner Wood Pellet Boilers

  • HSV 9-22kW
  • Classic 9-22kW
  • Classic Lambda 25-60kW
  • HSV WTH 70-100Kw
  • HSV WTH 150-200Kw
Binder SRF (Step-grate) Boilers

  • 199kW-10MW
Hargassner Wood Log Boilers

  • HV 20-60kW
  • MV 35-49kW

Staff from our Renewable Heating Team will contact you to arrange a free survey of your property to assess your needs. Using all of the available information we will put together a comprehensive proposal outlining our recommendations. Our proposal document will compare a biomass installation with your current system (if one exists) and will include expected installation costs, running costs, fuel savings, carbon savings, eligible Renewable Heat Incentive (RHI) payments, financial benefit and return on investment.

Wood Pellet Video

  1. Pellet suction feed or direct auger
  2. Highest Efficiency over 95% – tested and certified!
  3. Low temperature boiler: Down to 38°C (optional with low temp version HSV 9-22 kW))
  4. Fully refactory-lined combustion chamber for high-temperature combustion
  5. Lambda Sensor with fuel-quality detection
  6. Automatic ash level indication
  7. Ashbox compression system permitting extended ash box emptying periods
  8. Ease of use through SMS module or remote monitoring via PC connection
  9. Induced draught fan creating optimum fuel efficiency and safety regardless and independent of the natural chimney draft
  10. Negative pressure sensor – safety feature ensuring the boiler shuts down if flue gasses enter the plant room
  11. Automatic sliding grate – fully automatic combustion chamber cleaning (150-kW and 199kW boilers have a moving step grate)
  12. Automatic turbulator cleaning
  13. Air sealed double rotary valve – 100% burn-back protection boiler and boiler can re-fuel whilst still ignited
  14. 5 year warranty with warranty extensions available subject to service and maintenance contracts.
  15. 30 years of manufacturing since 1984
  16. With the exception of a minor number of components such as auger motors, all parts are manufactured by Hargassner in Austria.

Wood Chip Video

  1. Highest Efficiency over 90% – tested and certified!
  2. Mulitifuel version (Agrofire 25kW to 40kW only) permits the burning of wood pellets, miscanthus, straw and grain)
  3. Fully refactory-lined combustion chamber and flame concentration plates for high-temperature combustion
  4. Lambda Sensor with fuel-quality detection
  5. Ashbox compacting system permitting extended ash box emptying periods
  6. Ease of use through SMS module or remote monitoring via PC connection
  7. Induced draught fan creating optimum fuel efficiency and safety regardless and independent of the natural chimney draft
  8. Negative pressure sensor – safety feature ensuring the boiler shuts down if flue gasses enter the plant room
  9. Automatic sliding grate – fully automatic combustion chamber cleaning (150-kW and 199kW boilers have a moving step grate)
  10. Automatic turbulator cleaning
  11. Air sealed double rotary valve – 100% burn-back protection boiler and boiler can re-fuel whilst still ignited
  12. Ingenious single motor technology – controls boiler cleaning, fly ash transport, grate ash removal and ash transport to ash box.
  13. 5 year warranty with warranty extensions available subject to service and maintenance contracts.
  14. 30 years of manufacturing since 1984
  15. With the exception of a minor number of components such as auger motors, all parts are manufactured by Hargassner in Austria.
  16. Option: Wood log combustion
